A = C-profile can be integrated into the KMA!
The H dimension in the tables is based on the maximum cable diameter. Cables with smaller diameters may result in lower overall clamp housing heights. Tightening torque for CFX clamps 1.5 Nm, for electrical chainflex® round cables
Dimension B = +2

Characteristics of igus® chainfix multi-clamps

• More modular options of the proven igus® chainfix strain relief system
• Optimised stacker saddle, captive due to locking spring and with spring groove for an easy and precise installation
• Universal strain relief - various assembly options
• Conventional stacker saddle. Long load-bearing surface improves the strength of the clamp
• Save both time and space during installation
• Compact and modular
• For cables with small outer diameters
• Cost-effective

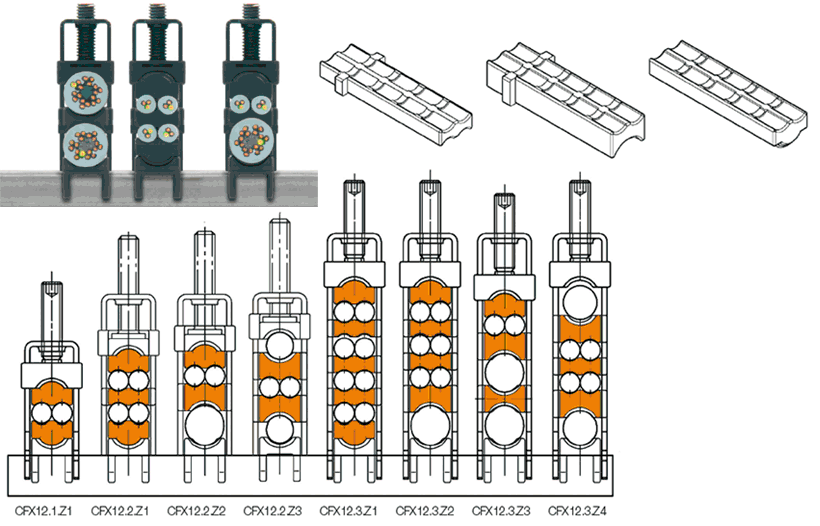

Part No.		Quantity		Individual parts		Stacker saddles				≤ ø
Type										Shaft Ø[mm]
CFX12.1.Z1		2x		-		-		-		6
CFX12.2.Z1		2x		1x		-		-		6
CFX12.2.Z2		1x		-		1x		-		6 + 12
CFX12.2.Z3		-		-		2x		-		6 + 8
CFX12.3.Z1		2x		3x		-		-		6
CFX12.3.Z2		1x		2x		1x		-		6 + 12
CFX12.3.Z3		1x		-		1x		1x		6 + 12
CFX12.3.Z4		-		1x		2x		-		6 + 10

Cable diameter [mm]:
Part No. :
B [mm]:



Cable diameter [mm]:
Part No. :
B [mm]:



Cable diameter [mm]:
Part No. :
B [mm]:



Cable diameter [mm]:
Part No. :
B [mm]:



Cable diameter [mm]:
Part No. :
B [mm]:
