Cable strain relief for cable chains & dynamic applications

Strain relief devices from igus have been specifically developed for use in energy chains and dynamic applications. They fix cables in energy chains and ensure that cables are not torn out. The combination of chainflex cable materials and the contacting plastic components of the strain relief elements from igus are designed for long cable service life and maximum holding force. For years, strain relief elements have been used by customers around the world, such as the CFXL clamps for long travels and harsh applications, or the CFU.V strain relief with innovative honeycomb design for installation in seconds and high holding force, or the chainfix CFN nugget strain relief blocks for simple and cost-effective strain relief solutions.

Types of cable strain relief

chainfix clamps

CFX clamps strain relief

Can be integrated into KMA mounting bracket
For up to three cables stacked above one another
Reduced installation height, space-saving
High strength for dynamic applications
For the following energy chain systems: E4 | E6 | for all plastic-metal mounting bracket (KMA) with C profile

Strain relief separators

Strain relief separators

Can be integrated in the mounting bracket
Strain relief separator can be positioned anywhere as required
For applications with medium accelerations
Easy to fit, cost-effective
For the following energy chain systems: E2/000 | E2 e-tubes | E6 | T3

Tiewrap plates

Tiewrap plates strain relief

For many applications with medium rates of acceleration
Can be clipped onto some mounting brackets
Can be used as an individual part in switchgear cabinets or in the assembly of machines
For the following energy chain systems: easy chain | E2/000 | E2 tubes | E4 | E6

Honeycomb strain relief CFU

Honeycomb strain relief CFU

Strain relief achieved up to 80% faster
Simply insert cables and hoses into the honeycomb and close
Strain relief openable from both sides
Easy to make changes - add or remove cables/hoses
For the following energy chain systems: E2.48 | 3400/3500 | 3450/3480 | R68 | R167/168 | R2.48 | E4.48L/R4.48L | E4.42/H4.42/R4.42 | E61.52 | E6.52/R6.52

Strain relief element CFV

Strain relief element CFV

Strain relief for cables can be retrofitted easily, even in the case of closed energy tubes and different plug-in connectors
Easy to retrofit
For the following energy chain systems: E2/000 | R2.1 | E4.1L | E4.1

Strain relief nuggets

Strain relief element CFV

Cost-effective, fast strain relief for easy applications with small space and medium accelerations
For all KMA mounting brackets with C-profile
For the following energy chain systems: For all KMA with C-profile or top-hat (DIN) rails

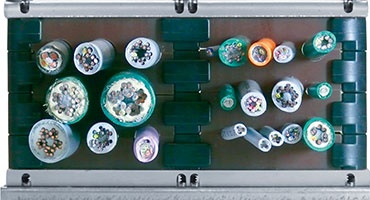

Strain relief connector system CFB

Strain relief connector system CFB

For applications with high accelerations and loads e.g., in machine tools
Standard screw connection
Customised production from 1 piece.
For the following energy chain systems: E4 | E6 | for all plastic-metal mounting bracket (KMA) with C profile

CF.P tensile force monitoring

i.Sense CF.P: tensile force monitoring for cables strain relief

The CF.P sensor measures the tensile forces on the cables directly at the strain relief
Triggers a shutdown by means of the NC contact if forces are excessive
Permanently increased tensile forces can lead to cable damage and in the worst case, cable fire

Minimum gap to strain relief

Minimum gap between the strain relief and the beginning of the bend radius

Tests on our premises have shown that a strain relief component located close to the bend point of the e-chain has no adverse effect on the durability of chainflex cables. It is possible, therefore, to integrate the strain relief with the mounting bracket. We supply strain relief options, such as chainfix clamps or the space-saving tiewrap plate, for almost all e-chains.

Tested under realistic conditions, with account being taken of diverse parameters

Whether under the influence of fluids like water or oil, or at different ambient temperatures. The interaction of chainfix systems with different jacket materials of cables and hoses plays a big role in our in-house tests.

Strain reliefs catalogue

Catalogue. For more information, see the strain reliefs catalogue.

Download now (PDF)

Energy chains shop

Energy chains shop. From small to medium and large energy chains for all applications.

Energy chain configurator

Energy chain configurator. Design energy chains quickly and easily.

Go to the energy chain configurator

Knowledge Base energy chains

Knowledge base. Find important information, questions and answers regarding energy chains.

To the energy chains knowledge base
