Prevent loop formation
Retraction system for small robotics

triflex® RSE with deflection

triflex® RSE retraction system for small robot

Prevent loops at the robot head –
for small robots

Customised for robots with small to medium loads, the igus® triflex® RSE retraction system provides a way to prevent loop formation in the robot workspace, even in highly dynamic applications.

1

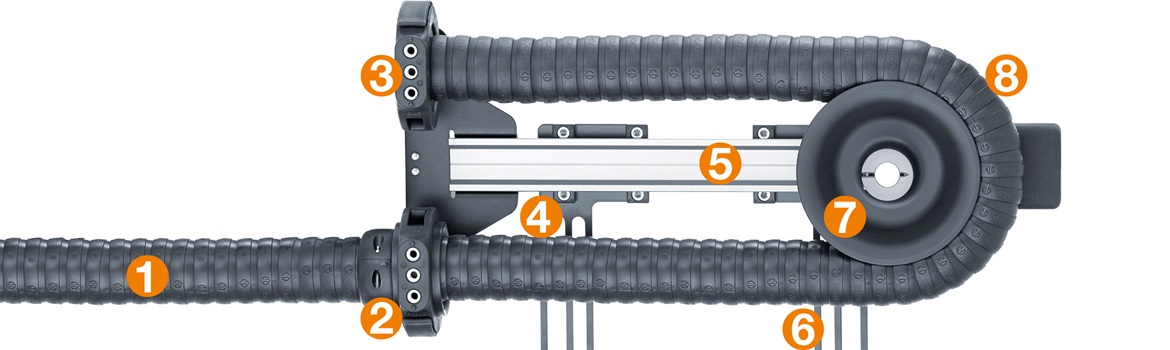

triflex® RSE allows up to 500 mm of retraction length

2

For TRC and TRE

3

Delivered with left or right fixed end already assembled

4

Custom connection possibilities using adapter consoles

5

Maintenance-free igus® drylin® W linear unit

6

Adjustable mounting position

7

Open system, low profile design

8

Also for high accelerations (due to low weight)

  • For series TRC·TRE with a ø-index of 40 mm
  • Extremely fast response, even in highly dynamic robot programs
  • Low weight, very little reduction in robot handling capacity
  • Universal adjustable installation brackets
  • Maintenance and lubrication-free igus® drylin® W linear unit
  • For maximum degrees of freedom
  • More tolerance for the robot programmer
  • For cable diameters up to 11 mm

Functionality of the RSE system with deflection

explains the system in 24 seconds

  • Lightweight
  • Constant retraction force
  • No retraction force adjustment necessary
  • The cable can be fed in on the right or left side

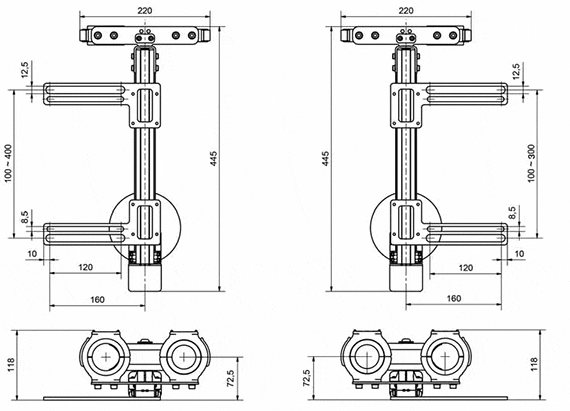

RSE retraction system without chain package

you can find the right chain packages further down the page

Part no. Connection point Max. retraction length [mm]
Price

Ready for shipment within 24 hours TR.RSE.02.40.R Right connection point 500 1,012.61 SGD Add to shopping cart
Delivery time on request TR.RSE.50.R Right connection point 500 1,460.72 SGD Add to shopping cart
Delivery time on request TR.RSE.02.40.L Left connection point 500 1,012.61 SGD Add to shopping cart
Delivery time on request TR.RSE.50.L Left connection point 500 1,460.72 SGD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

Complete your RSE retraction system with the right e-chain®

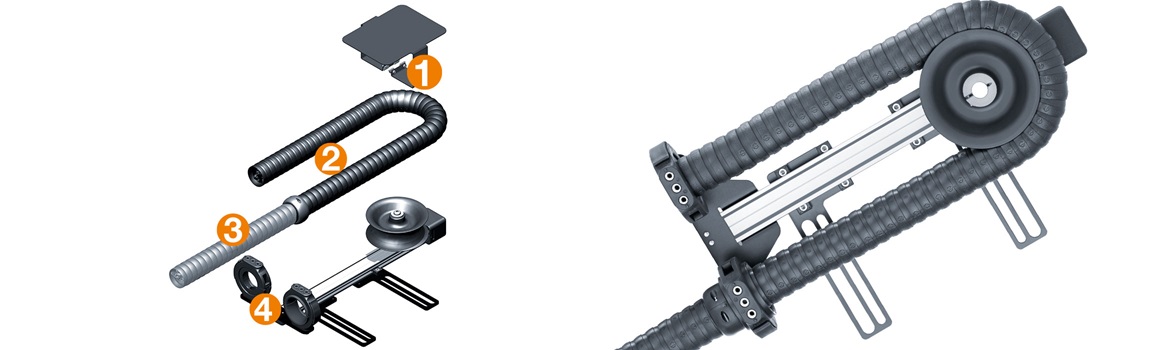

RSE with numbers 1= Cover for additional installation space on the robot, optional: TR.RSE.40.COVER
2= Suitable triflex® R e-chains® for RSE: TRC.RSE.40.058.LLLL.0; TRE.RSE.40.058.LLLL.0.B
3= Total chain length = Additional length starting from the gliding feed-through LLLL + the chain length within the system
4= RSE system (without e-chain®) + mounting bracket + gliding feed-through = TR.RSE.02.40.R or TR.RSE.02.40.L

Closed or open design

Chain package for Size 40

enclosed chain series (TRC)

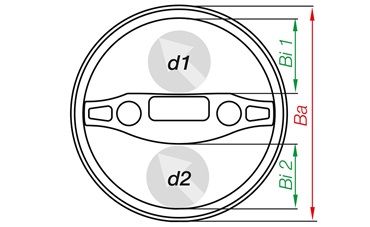

Order No. Inner height e-chain®
standard length
[LLL*]
Chain length
within the
system
Total length
[LLL* + 904 mm]
Price
  Bi 1 Bi 2 [mm] [mm] [mm]
Delivery time on request TRC.RSE.40.058.0500.0 15 13 500 904 1404 313.60 SGD Add to shopping cart
Delivery time on request TRC.RSE.40.058.0750.0 15 13 750 904 1654 364.33 SGD Add to shopping cart
Delivery time on request TRC.RSE.40.058.1000.0 15 13 1000 904 1904 415.04 SGD Add to shopping cart
Delivery time on request TRC.RSE.40.058.1250.0 15 13 1250 904 2154 465.75 SGD Add to shopping cart
Delivery time on request TRC.RSE.50.080.0750.0 18.8 16.2 750 1044 1794 490.90 SGD Add to shopping cart
Ready for shipment within 2 working days TRC.RSE.50.080.0500.0 18.8 16.2 500 1044 1544 433.49 SGD Add to shopping cart
Ready for shipment within 2 working days TRC.RSE.50.080.1000.0 18.8 16.2 1000 1044 2044 544.50 SGD Add to shopping cart
Delivery time on request TRC.RSE.50.080.1250.0 18.8 16.2 1250 1044 2294 598.10 SGD Add to shopping cart
Ready for shipment within 2 working days TRC.RSE.50.080.1500.0 18.8 16.2 1500 1044 2544 655.53 SGD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

*LLL = additional length from the glide lead-through
Total chain length = additional length from the glide lead-through (LLL) + chain length inside the system

Chain package for Sizes 40 and 50

open chain series (TRE)

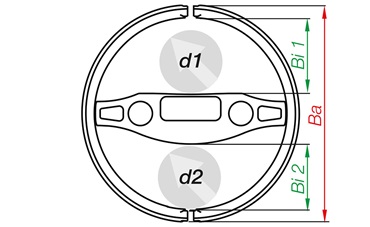

Order No. Inner height e-chain®
standard length
[LLL*]
Chain length
within the
system
Total length
[LLL* + 904 mm]
Price
  Bi 1 Bi 2 [mm] [mm] [mm]
TRE.RSE.40.058.0500.0.B 15 13 500 904 1404 335.31 SGD Add to shopping cart
TRE.RSE.40.058.0750.0.B 15 13 750 904 1654 389.90 SGD Add to shopping cart
TRE.RSE.40.058.1000.0.B 15 13 1000 904 1904 444.51 SGD Add to shopping cart
TRE.RSE.40.058.1500.0.B 15 13 1500 904 2404 553.68 SGD Add to shopping cart
TRE.RSE.40.058.1750.0.B 15 13 1750 904 2654 608.27 SGD Add to shopping cart
TRE.RSE.50.080.0500.0.B 18.8 16.2 500 1044 1544 456.44 SGD Add to shopping cart
TRE.RSE.50.080.0750.0.B 18.8 16.2 750 1044 1794 517.75 SGD Add to shopping cart
TRE.RSE.50.080.1000.0.B 18.8 16.2 1000 1044 2044 574.96 SGD Add to shopping cart
TRE.RSE.50.080.1500.0.B 18.8 16.2 1500 1044 2544 693.48 SGD Add to shopping cart
TRE.RSE.50.080.1750.0.B 18.8 16.2 1750 1044 2794 750.69 SGD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

Cover for the RSE retraction system

  • For overhead work
  • Offers additional protection
  • Option for labelling or lightweight additional components

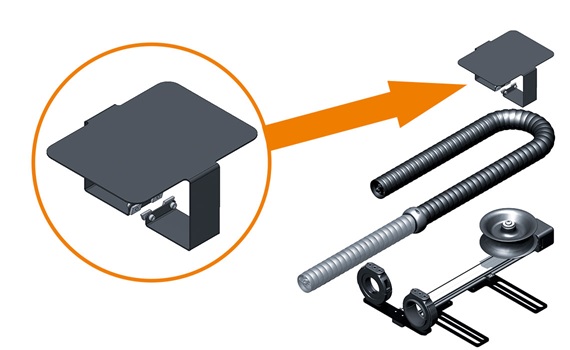

RSE retraction system Cover

Cover product range for the RSE retraction system

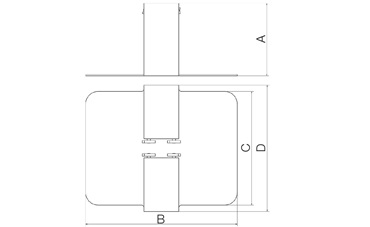

technical drawing


Part No. Size index A
in mm
B
in mm
C
in mm
D
in mm
Fill weight
in kg
Product weight
in kg
Price
TR.RSE.40.Cover 40 115 240 180 200 1,5 1.1 197.44 SGD Add to shopping cart
TR.RSE.50.Cover 50 126 300 248 248 1,5 1.7 314.09 SGD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

Ready for shipment within 24 hours
Ready for shipment within 2 working days
Delivery time on request
