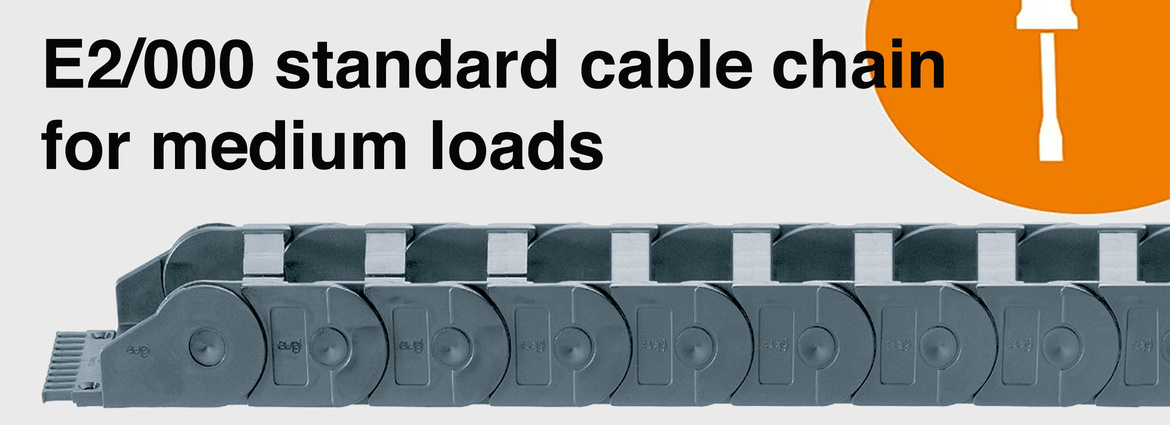

E2/000 e-chain® cable chain - Two-piece - The E2 standard

The Series E2/000 is the fourth generation of cable chain in this size. All our experience went into this series: easy and versatile installation combined with ruggedness - high stability combined with low-noise operation, long service life for cables and manifold mounting options. The version is standardized for all E2/000 models. Mechanical engineers all over the world rely upon this range.

Order a free sample now

Overview of E2/000 advantages

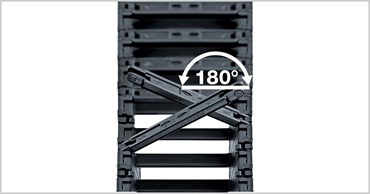

E2/000 cross bar cable chain

Special snap-open mechanism, open along left or right. Hinged crossbar can be turned more than 180° on both sides.

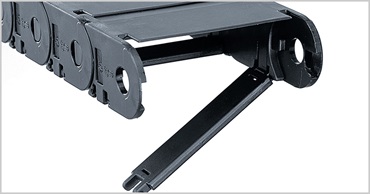

E2/000 cable chain inner and outer radius

Half e-tube option. Completely enclosed along outer radius Inner radius alternatively swivelable to right or left.

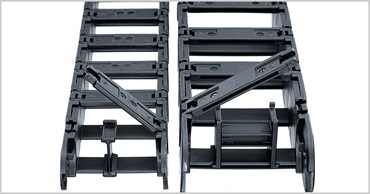

E2/000 cable chain interior separation

Safe seat of separators and interior separation also available for open e-chain®.

Inner height 21mm, energy chain, "half" energy tube, energy tube

Series 1500 E2000 standard cable chain

Series 1500 E2/000 cable chain

Inner height hi: 21mm
Inner widths Bi: 15 - 125mm
Bend radii R: 35 - 180mm
Pitch: 33.3mm

e-chain®, snap-open along the outer radius

Series 1400 E2/000 cable chain

Series 1400 E2/000 cable chain

Inner height hi: 21mm
Inner widths Bi: 15 - 125mm
Bend radii R: 35 - 180mm
Pitch: 33.3mm

e-chain®, snap-open along the inner radius

Series 1450 E2/000 cable chain

Series 1450 E2/000 cable chain

Inner height hi: 21mm
Inner widths Bi: 15 - 125mm
Bend radii R: 35 - 180mm
Pitch: 33.3mm

Half energy tube, snap-open along the inner radius

Series 1480 E2/000 cable chain

Series 1480 E2/000 cable chain

Inner height hi: 21mm
Inner widths Bi: 15 - 125mm
Bend radii R: 35 - 180mm
Pitch: 33.3mm

Full energy tube, snap-open along the inner radius

EF2.21 E2/000 cable chain

Series EF2.21 E2/000 cable chain

Inner height hi: 21mm
Inner widths Bi: 25 - 50mm
Bend radii R: 35 - 180mm
Pitch: 33.3mm

Inner height 25mm, energy chain, "half" energy tube, energy tube

Series 2500 E2/000 cable chain

Series 2500 E2/000 cable chain

Inner height hi: 25mm
Inner widths Bi: 25 - 125mm
Bend radii R: 55 - 250mm
Pitch: 46mm

e-chain®, snap-open along the outer radius

Series 2400 E2/000 cable chain

Series 2400 E2/000 cable chain

Inner height hi: 25mm
Inner widths Bi: 25 - 125mm
Bend radii R: 55 - 250mm
Pitch: 46mm

e-chain®, snap-open along the inner radius

Series 2450 E2/000 cable chain

Series 2450 E2/000 cable chain

Inner height hi: 25mm
Inner widths Bi: 25 - 125mm
Bend radii R: 100 - 250mm
Pitch: 46mm

Half energy tube, snap-open along the inner radius

Series 2480 E2/000 cable chain

Series 2480 E2/000 cable chain

Inner height hi: 25mm
Inner widths Bi: 38 - 103mm
Bend radii R: 100 - 250mm
Pitch: 46mm

Full energy tube, snap-open along the inner radius

Inner height 35mm, energy chain, "half" energy tube, energy tube

Series 2700 E2/000 cable chain

Series 2700 E2/000 cable chain

Inner height hi: 35mm
Inner widths Bi: 50 - 175mm
Bend radii R: 63 - 250mm
Pitch: 56mm

e-chain®, snap-open along the outer radius

Series 2600 E2/000 cable chain

Series 2600 E2/000 cable chain

Inner height hi: 35mm
Inner widths Bi: 50 - 175mm
Bend radii R: 63 - 250mm
Pitch: 56mm

e-chain®, snap-open along the inner radius

Series 2650 E2/000 cable chain

Series 2650 E2/000 cable chain

Inner height hi: 35mm
Inner widths Bi: 50 - 175mm
Bend radii R: 100 - 250mm
Pitch: 56mm

Half energy tube, snap-open along the inner radius

Series 2680 E2/000 cable chain

Series 2680 E2/000 cable chain

Inner height hi: 35mm
Inner widths Bi: 50 - 100mm
Bend radii R: 100 - 250mm
Pitch: 56mm

Full energy tube, snap-open along the inner radius

Inner height 45mm, energy chain, "half" energy tube, energy tube

Series 3500 E2/000 cable chain

Series 3500 E2/000 cable chain

Inner height hi: 45mm
Inner widths Bi: 50 - 255mm
Bend radii R: 75 - 300mm
Pitch: 67mm

e-chain®, snap-open along the outer radius

Series 3400 E2/000 cable chain

Series 3400 E2/000 cable chain

Inner height hi: 45mm
Inner widths Bi: 50 - 255mm
Bend radii R: 75 - 300mm
Pitch: 67mm

e-chain®, snap-open along the inner radius

Series 3450 E2/000 cable chain

Series 3450 E2/000 cable chain

Inner height hi: 45mm
Inner widths Bi: 50 - 255mm
Bend radii R: 150 - 300mm
Pitch: 67mm

Half energy tube, snap-open along the inner radius

Series 3480 E2/000 cable chain

Series 3480 E2/000 cable chain

Inner height hi: 45mm
Inner widths Bi: 75 - 115mm
Bend radii R: 150 - 300mm
Pitch: 67mm

Full energy tube, snap-open along the inner radius

Inner height 26 mm, e-chain, small pitch for low noise run at high speed

Series 255 E2/000 cable chain

Series 255 E2/000 cable chain

Inner height hi: 24mm
Inner width Bi: 25mm
Bend radii R: 55 - 250mm
Pitch: 27.8mm

e-chain®, snap-open along the outer radius

e-chain® selection aids

You can find the right e-chain® quickly by entering concrete parameters and with the aid of a comparison table.

Installation instructions

Joining and separating of chain links, filling of the e-tubes.

To the installation instructions

Application examples

Applications in various industrial sectors and in the igus® test laboratory.

You may also consider more E2 medium series in the "old style" category.

E2/000 chain opener

Chain opener

Open E2/000 e-chains® quickly with the chain opener

To the chain opener

E2/000 with extender crossbars

E2/000 with extender crossbars

Two-part system - The E2 standard chain as e-chain variant with extender crossbars

To product overview

Classification and Qualification

IPA classification

IPA Qualification
Report IG 1303-640-1, tested 1500.050.038.0 with
v = 0.5/1.0/2.0
ISO Class 2, according to standard DIN EN ISO 14644-1

ESD classification

ESD classification: electrically conductive ESD versions upon request

IPA classification

IPA classification: ISO cleanliness classification 3 (DIN 14644-1), at v=2m/s, with standard material igumid G series 2500.05.055.0

UL94-V2 classification

UL94 V0 classification upon request

Noise-optimised energy chains

46dB(A) level determined at the igus® test lab, v = 1.0m/s unsupported, e.g. series 2600.05.075.0

iF Design

iF Design Award for E2/000 series EF2.21

Individual parts of this product family are ready for shipping within 24 hours from our local stock
